型 号 |
相 数 |
步距角
(Deg) |
电 压
(v) |
电 流
(A) |
保持转矩
Nm(kg.cm) |
空载起动频率
(Hz) |
运行频率
(Hz) |

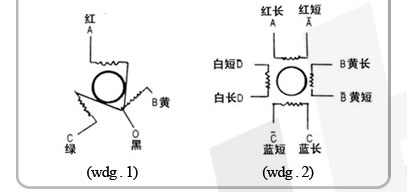

接线图
Wdg |
备注 |
28BF001 |
3 |
3/6 |
27 |
0.8 |
0.017(0.18) |
1800 |
|
1 |
|
36BF002-Ⅱ |
3 |
3/6 |
27 |
0.6 |
0.049(0.5) |
1900 |
|
1 |
|
36BF003 |
3 |
1.5/3 |
27 |
1.5 |
0.078(0.8) |
3100 |
|
1 |
|

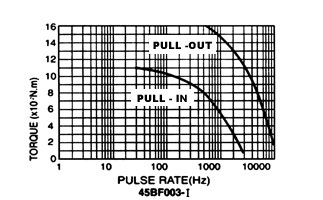

45BF003-Ⅱ |
3 |
1.5/3 |
60 |
2.0 |
0.196 (2) |
3700 |
12000 |
1 |
|
45BF005-Ⅱ |
3 |
1.5/3 |
27 |
2.5 |
0.196 (2) |
3000 |
|
1 |
可供双轴伸 |
45BF005-Ⅲ |
3 |
1.5/3 |
27 |
2.5 |
0.098 (1) |
2900 |
|
1 |
|

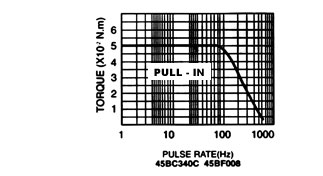

45BF008 |
3 |
1.5/3 |
24 |
0.2 |
0.118 (1.2) |
500 |
|
1 |
|
45BC340C |
3 |
1.5/3 |
12 |
0.4 |
0.118 (1.2) |
500 |
|
1 |
|

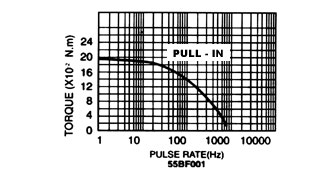

55BF001 |
3 |
7.5/15 |
27 |
2.5 |
0.372 (3.8) |
750 |
|
1 |
|

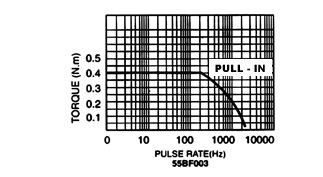

55BF003 |
3 |
1.5/3 |
27 |
3.0 |
0.666 (7) |
1800 |
|
1 |
可供双轴伸 |

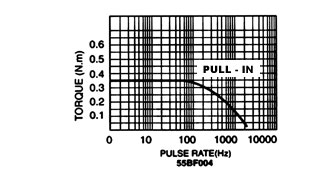

55BF004 |
3 |
1.5/3 |
27 |
3.0 |
0.49(5) |
2200 |
|
1 |
可供双轴伸 |
55BF004-Ⅱ |
3 |
1.5/3 |
30 |
0.5 |
0.49(5) |
550 |
|
1 |
|

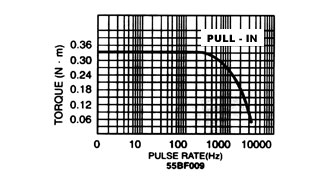

55BF009 |
4 |
0.9/1.8 |
27 |
3.0 |
0.784(8 |
2500 |
|
2 |
可供双轴伸 |
|
|
|
 |
|
|

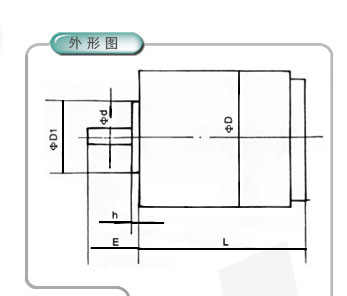

型 号 |
ΦD |
ΦD1 |
h |
Φd |
E |
L |
ΦD2 |
MS |
备 注 |
28BF001 |
28 |
|
1.5 |
|
11.5 |
30 |
22 |
4-M2.5 |
|
36BF002-Ⅱ |
36 |
|
2.5 |
|
14.5 |
41 |
27 |
4-M3 |
|
36BF003 |
36 |
|
2.5 |
|
14.5 |
41 |
27 |
4-M3 |
|
45BF003-Ⅱ |
45 |
|
2.5 |
|
14.5 |
82 |
33 |
4-M3 |
|
45BF005-Ⅱ |
45 |
|
2.5 |
|
14.5 |
58 |
33 |
4-M3 |
|
45BF005-Ⅲ |
45 |
|
2.5 |
|
14.5 |
56 |
33 |
4-M3 |
|
45BF008 |
45 |
|
2.5 |
|
14.5 |
58 |
33 |
4-M3 |
|
45BC340C |
45 |
|
2.5 |
|
14.5 |
58 |
33 |
4-M3 |
|
55BF001 |
55 |
|
2.5 |
|
14.5 |
70 |
40 |
4-M3 |
|
55BF003 |
55 |
|
2.5 |
|
20.5 |
70 |
40 |
4-M3 |
|
55BF004 |
55 |
|
2.5 |
|
20.5 |
60 |
40 |
4-M3 |
|
55BF004-Ⅱ |
55 |
|
2.5 |
|
20.5 |
60 |
40 |
4-M3 |
|
55BF009 |
55 |
|
2.5 |
|
20.5 |
70 |
40 |
4-M3 |
|
|
|
|
| |
 |
|
|
 |
 |
|
|
 |
 |
|
|
 |
 |
|
|
|
|
|
|
 |
|
|
|
|
 |
|
|
 |
 |
|
|
 |
 |
|
|
 |
|
|
 |
|
|
