步进电机 → 反应式步进电机 →70BF/BC 75BF/BC系列 |
|
|
|
 |
|
|
| |
 |
|
|
 |
|
|
 |
 |
|
|
 |
|
|
 |
|
|
型 号 |
相 数 |
步距角
(Deg.) |
电 压
(v) |
电 流
(A) |
保持转矩
Nm(kg.cm) |
空载起动频率
(Hz) |
运行频率
(Hz) |

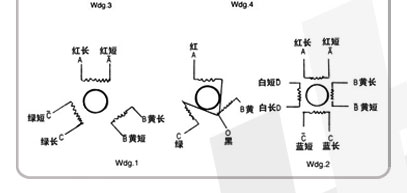

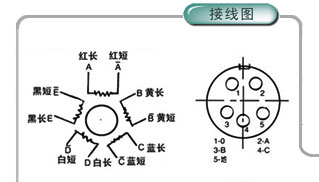

接线图
Wdg |
备注 |

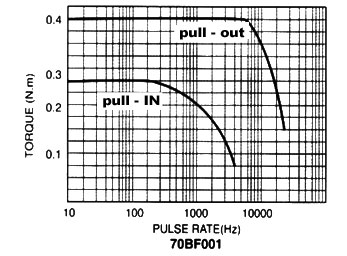

70BF001 |
5 |
1.5/3 |
60 |
3.5 |
0.392(4) |
4000 |
16000 |
3 |
|
70BF003 |
3 |
1.5/3 |
27 |
3.0 |
0.784(8) |
1600 |
|
1 |
|

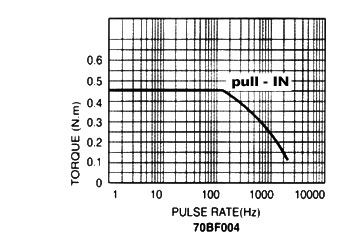

70BF004 |
4 |
0.9/1.8 |
27 |
3.0 |
0.784(8) |
2100 |
|
2 |
|
70BC340D |
3 |
1.5/3 |
27 |
3.0 |
0.784(8) |
1600 |
|
4 |
航插 |
75BF001 |
3 |
1.5/3 |
24 |
3.0 |
0.392(4) |
1750 |
|
1 |
可供双轴伸 |

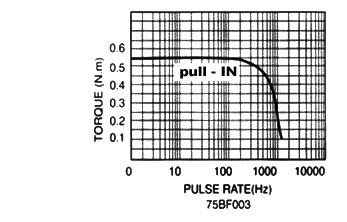

75BF003 |
3 |
1.5/3 |
30 |
4.0 |
0.882(9) |
1250 |
|
1 |
|
75BF004 |
3 |
1.5/3 |
80 |
5.8 |
0.49(5) |
2500 |
|
1 |
|

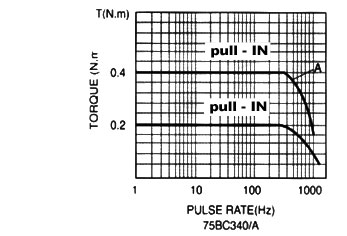

75BC340 |
3 |
1.5/3 |
30 |
3.0 |
0.392(4) |
2000 |
16000 |
1 |
|
75BC340A |
3 |
1.5/3 |
30 |
4.0 |
0.88(9) |
1900 |
|
1 |
|
75BC380 |
3 |
0.75/1.5 |
30 |
3.0 |
0.98(10) |
2000 |
|
1 |
|
75BC380A |
3 |
0.75/1.5 |
30 |
3.0 |
0.68(7) |
2200 |
|
1 |
|
|
|
|
| |
 |
|
|
|
|

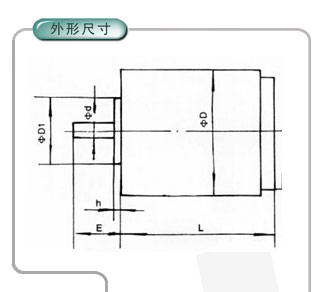

型 号 |
ΦD |
ΦD1 |
h |
Φd |
E |
L |
ΦD2 |
MS |
备 注 |
70BF001 |
70 |
|
2.5 |
|
23.5 |
87.5 |
45 |
4-M4 |
|
70BF003 |
70 |
|
3 |
|
25 |
63 |
54 |
4-M4 |
|
70BF004 |
70 |
|
3 |
|
25 |
63 |
54 |
4-M4 |
|
70BC340D |
70 |
|
3 |
|
25 |
63 |
54 |
4-M4 |
|
75BF001 |
75 |
|
2 |
|
16 |
55 |
68 |
3-M4 |
|
75BF003 |
75 |
|
2 |
|
16 |
77 |
68 |
3-M4 |
|
75BF004 |
75 |
|
2 |
|
25 |
72 |
68 |
3-M4 |
|
75BC340 |
75 |
|
2 |
|
25 |
61 |
68 |
3-M4 |
|
75BC340A |
75 |
|
2 |
|
25 |
77 |
68 |
3-M4 |
|
75BC380 |
75 |
|
2 |
|
25 |
61 |
68 |
3-M4 |
|
75BC380A |
75 |
|
2 |
|
20.5 |
53 |
68 |
3-M4 |
|
|
|
|
|
| |
|
 |
|
|
 |
 |
|
|
 |
 |
|
|
 |
 |
|
|
 |
 |
|
|
| |
|
|
|
|
|
|
|
|
|
