型 号 |
相数 |
电压
(v) |
电流
(A) |
电阻
(Ω) |
最 大
静转矩
(kg.cm) |
转 动
惯 量(g.c㎡) |
重量
(kg) |

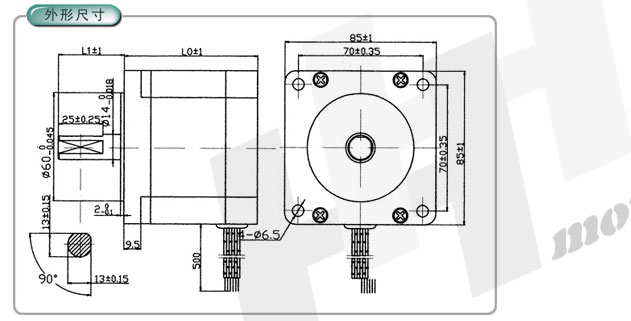

外形尺寸 |

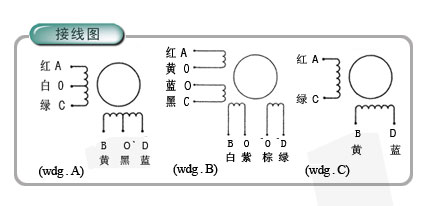

接线图 |
L0
(mm) |
L1
(mm) |
85BYGH450A-01 |
4 |
4.4 |
2.00 |
2.20 |
21 |
1400 |
1.70 |
68 |
37 |
Wdg.B |
85BYGH450A-02 |
4 |
2.0 |
4.50 |
0.44 |
21 |
1400 |
1.70 |
68 |
37 |
Wdg.B |
85BYGH450A-03 |
4 |
2.8 |
3.50 |
0.80 |
21 |
1400 |
1.70 |
75 |
37 |
Wdg.A |
85BYGH450A-04 |
4 |
2.0 |
3.00 |
1.00 |
21 |
1400 |
1.70 |
75 |
37 |
Wdg.A |
85BYGH450B-01 |
4 |
6.4 |
2.00 |
3.20 |
41 |
2700 |
2.80 |
98 |
37 |
Wdg.B |
85BYGH450B-02 |
4 |
2.8 |
4.50 |
0.62 |
41 |
2700 |
3.50 |
98 |
37 |
Wdg.A |
85BYGH450B-03 |
4 |
6.0 |
2.00 |
3.00 |
50 |
2900 |
3.50 |
113 |
37 |
Wdg.A |
85BYGH450B-05 |
2 |
3.5 |
4.00 |
0.80 |
50 |
2900 |
3.50 |
113 |
37 |
wdg.C |
85BYGH450B-06 |
2 |
3.5 |
5.00 |
0.60 |
60 |
2900 |
3.50 |
113 |
37 |
wdg.C |
85BYGH450C-01 |
4 |
7.8 |
2.00 |
3.90 |
63 |
4000 |
3.80 |
128 |
37 |
wdg.B |
85BYGH450C-02 |
4 |
3.8 |
4.00 |
0.95 |
63 |
4000 |
3.80 |
128 |
37 |
wdg.B/C |
85BYGH450C-03 |
2 |
3.3 |
3.00 |
1.10 |
63 |
4000 |
4.90 |
151 |
37 |
wdg. C |
85BYGH450C-06 |
4 |
5.0 |
4.20 |
1.20 |
63 |
4000 |
3.50 |
151 |
37 |
wdg.A |
85BYGH450C-10 |
2 |
2.0 |
6.00 |
0.30 |
72 |
4000 |
3.80 |
151 |
37 |
wdg.C |
|
|
